What is an Air Operated Pinch Valve
Home » News » What is an Air Operated Pinch Valve

What is an Air Operated Pinch Valve

Views:157     Author:Site Editor     Publish Time: 2020-09-14      Origin:Site

The pneumatic pinch valve series products have no sealing points and will not leak. They are resistant to particle corrosion and will not be blocked when transporting liquids containing fibers. Its performance is comparable to imported products, and it has the advantages of a short supply period, reasonable price, and good service.



Working principle


When the control medium is not input, the cavity between the rubber sleeve and the valve body is in communication with the atmosphere, and the rubber sleeve is in an outward tension state under fluid pressure. Since there are reinforced plies arranged at a certain angle in the sleeve, the axial and radial pressures of the sleeve are balanced with each other, so the length and diameter of the sleeve will not change due to fluid pressure. When the control medium enters the cavity between the pipe sleeve and the valve body, the pipe sleeve is deformed and blocked under the pressure of the medium.



Application industry



Pneumatic pinch valves are suitable for various pneumatic conveying systems. Its application areas include cement silos, pigment and particle treatment, ceramics, glass and plastics industries, sewage treatment, pharmaceutical industry, food industry, and wine brewing industry. An air operated pinch valve is also widely used in batching systems and weighing systems, powder coating systems, vacuum toilet systems, vacuum conveying systems, suction, and compressed air control systems. In addition, it is also used in a large number of matching ceramic filters.

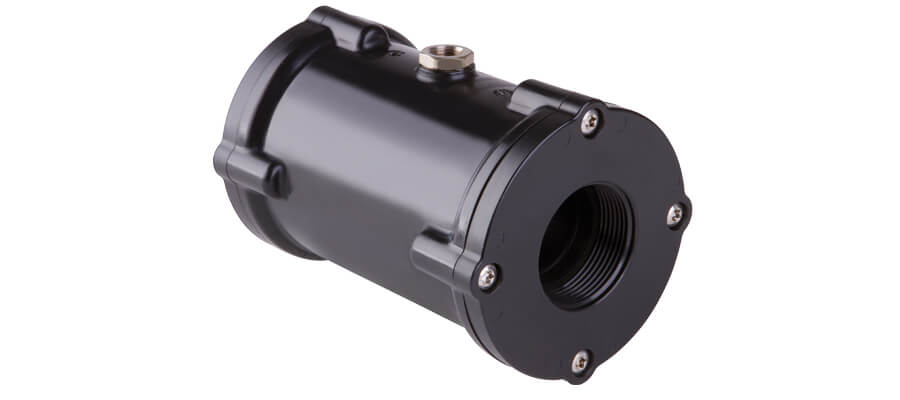

pneumatic pinch valve


Metallurgy, chemical industry, cement, ceramics, glass, plastics, wastewater treatment, pharmaceuticals, food and beverage, wine and other industries, transport liquids containing fibers, petroleum, mineral pulp, cement, powder, slurry, sewage sludge, and other fluids, even in the body mixed solid matter can also be completely cut off.



Pneumatic pinch valves are suitable for various pneumatic conveying systems, and their application areas include cement silos, pigment and particle treatment, ceramics, glass and plastic industries, sewage treatment, pharmaceutical industry, food industry, and wine brewing industry. In addition, air operated pinch valves are also widely used in dosing systems and weighing systems, powder coating equipment, vacuum toilet systems, vacuum delivery systems, suction, and compressed air control systems.



1. Pulp and paper mill

In pulp and paper mills, paper pulp, paint and waste paper recycling production lines have more stringent requirements on valves. The flexible elastic rubber tube of the pneumatic pinch valve is particularly ideal for these working conditions.

Swirl discharge, paper recycling, paper pulp, paint, PH increase, lime mud, deinking.



2. Power industry

In power plants, the treatment of lime and coal are two very difficult problems. The high abrasion resistance and self-cleaning of the main air operated pinch valve of JiaNai will not cause problems such as scaling, clogging, or freezing of mud.

Flue gas desulfurization system, coal ash treatment, coal treatment, bottom ash treatment, thickener replacement flow, wet lime scrubber.



3. Mining industry

The excellent abrasion resistance of the JiaNai pneumatic pinch valve is the best choice for mining industry control. The pneumatic pinch valve has a simple and maintenance-free design that can work perfectly even under the harshest working conditions.

Centrifuge control, lime feeding system, coal tailings, bleaching pool, mine cleaning, solid separation.



JiaNai Pinch Valve Co., Ltd is a professional air operated pinch valve manufacturer, which is equipped with advanced imported equipment. if you have any need, please contact us.
