Tank Truck Pneumatic Pinch Valve

Tank Truck Pneumatic Pinch Valve is designed for tank truck, industrial and silo vehicles. It is known for its strength, fewer individual parts, and space-saving elements as well as its maintenance-free design. The free cylindrical pass reduces flow resistance to a minimum. The tank truck pneumatic pinch valve has unpainted aluminum housing and flange. Nominal diameters DN80-DN100.

Product Description

Tank Truck Pneumatic Pinch Valves are perfect for regulating the mass flow of many types of applications like slurries, powders, liquids, emulsions, granular materials, and liquids. The secret to JIA NAI Pinch Valves' success is in the sleeves, which are made from a strong, highly resistant reinforced rubber with a material weave. The result is a sleeve that can provide a complete stoppage of flow, without any leaks. The sleeves are strong and last a very long time, even with abrasive applications.


The tank truck pneumatic pinch valves are designed specifically for use in silo trucks. They are known for their strength, fewer individual parts, and space-saving elements as well as their maintenance-free design. The free cylindrical pass reduces flow resistance to a minimum.


Tank Truck Pneumatic Pinch Valve Details

Nitrile Black sleeve, maximum temp 80°C

Aluminum Flanges, as per DIN 28459

Pinch Valve Body: Aluminum

6 BAR maximum operating pressure

8 BAR maximum control pressure

Air connection: 1/4″" Female Internal BSP

Face to Face: 228 mm

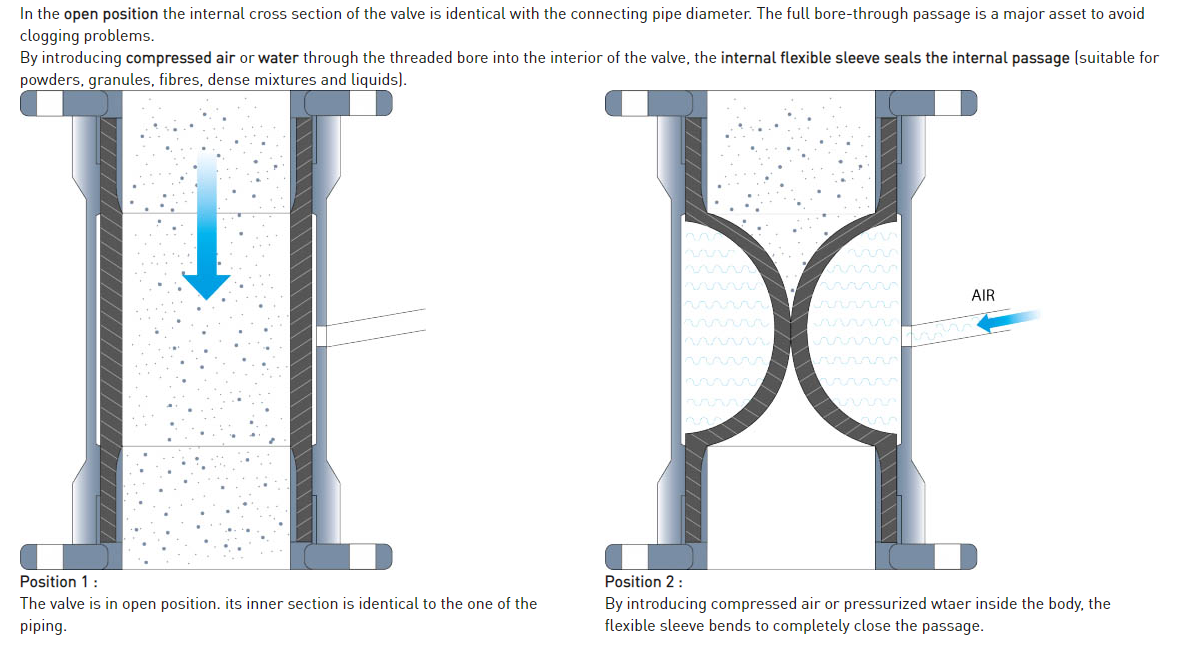

Tank Truck Pneumatic Pinch Valve Operating Mode


operating mode


Tank Truck Pneumatic Pinch Valve Advantages

● Full bore-through passage: no-load loss

● Compact overall dimensions

● Easy and quick sleeve and bush replacement

● Full bore-through passage without any pressure loss

● No product contact with the body

● Valve body in aluminum alloy

● Sleeves in fabric-reinforced material

● Sleeve support bushes either in aluminum alloy, hardened carbon steel, or 304L/316L stainless steel.

● Very low air consumption


Tank Truck Pneumatic Pinch Valve Application:

● Silo-trailers

● Semi-trailers

● Haul trucks
