Food Grade Pneumatic Flexible Tube Valve
Home » Products » VA Series » Food Grade Pneumatic Flexible Tube Valve
Share to:

Food Grade Pneumatic Flexible Tube Valve

Jia Nai food-grade pneumatic flexible tube valve has a simple structure and is an extremely economical and ideal shut-off valve solution. Because no additional transmission device is needed to operate the pneumatic pinch valve, only a two-position three-way solenoid valve or pilot valve can be used to control the pneumatic pinch valve

Product Description

In the traditional industry and food industry, some abrasive solid or liquid products containing particles, powders, fibers, and slurry are often transported through pipelines, so the food-grade pneumatic flexible tube valve is the best choice. The food-grade pneumatic flexible tube valve is valves developed by Jia Nai with excellent wear resistance and corrosion resistance. It is a good substitute for traditional ball valves, butterfly valves, diaphragm valves, and other valves.


How food-grade pneumatic flexible tube valve work?

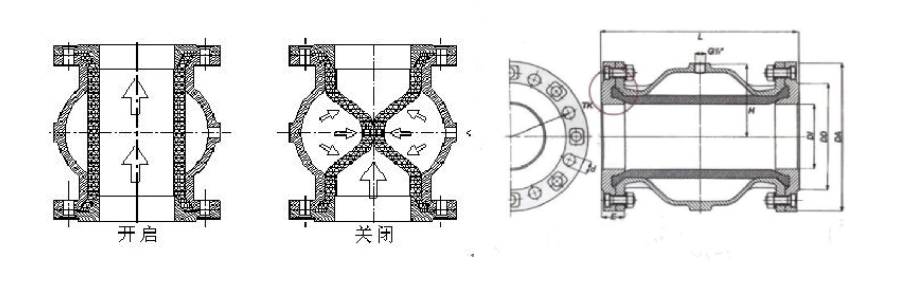

When the control gas does not input into the pneumatic pinch valve, the cavity between the rubber sleeve and the valve body communicates with the atmosphere, and the rubber sleeve is in an outwardly tensioned state by the fluid pressure. Because there are reinforced plies arranged at a certain angle in the sleeve, the axial and radial pressures of the sleeve are balanced with each other, so the length and diameter of the sleeve will not change due to the fluid pressure. When the control gas enters the cavity between the sleeve and the valve body, the sleeve is deformed and intercepted under the control gas pressure.



When compressed air (pressure difference is 2 bar) enters the valve body of the pneumatic pinch valve, the specially-made inner liner with high resilience is compressed to produce a lip-type closure. This extremely increases the service life of the inner sleeve. In this case, the pneumatic pinch valve is closed, so that the medium flow can be shut down 100%. Its working pressure varies depending on the nominal diameter and ranges from 2-6 bar. When the compressed air is interrupted, the specially-made inner liner expands rapidly under the dual effects of its own rebound force and medium pressure, and then the valve is fully opened.

5

The food-grade pneumatic flexible tube valve applications


● Food, Water

● Chemical, Agriculture

● Pharmaceuticals, Pneumatic conveying

● Powder painting systems, Ceramics, glass and plastics

● Sewage and Water treatment, Power plants, and coal slurries

● Cement, lime and aggregate plants,

● Mining sludge, sand, and waste liquids

● Any material streams where foldable such as liquids, pastes, slurries, powders, granules, pigments, and other materials are pumped, blown, pushed, metered, or flow by gravity through pipelines.
